testo 826 Infrared Temperature Measuring Instrument, Testo

testo 826 infrared temperature measuring instrument

HACCP from every point of view: the testo 826 series has just been optimized. A higher resolution thanks to the new processor ensures even more accurate measurement results. This allows the temperature to be recorded to an accuracy of 0.1 °C. The min./max. display shows the limit values of the last measurement. You can measure and monitor the temperature of the goods reliably and safely.

  • Non-contact measurement of surface temperature, ideally suitable for the food sector
  • 6:1 optics for fast and accurate measurement
  • 1-point laser measurement spot marking
  • Combined instrument with infrared and penetration measurement
  • Two adjustable limit values
  • Waterproof and robust thanks to dishwasher-safe protective cover TopSafe, according to protection class IP65
  • Hold function and display of min./max. values

The advantages:

  • Always monitor, measure and document temperature accurately, cleanly and quickly.
  • Fulfil HACCP regulations, and be able to provide proof at any time.
  • Maintain the cold chain in storage and transport.
  • Reduce the quantities of spoiled goods and use resources efficiently.
  • Measuring instruments calibrated according to strict regulations.
  • Conform to HACCP as well as EN 13485.

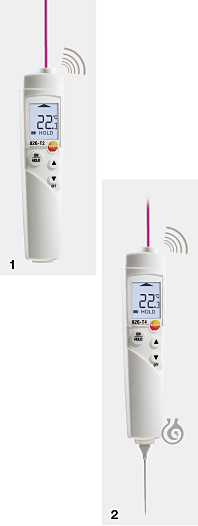

testo 826-T2: infrared thermometer with 1 point laser sighting, alarm function, incl. TopSafe and wall/belt holder

testo 826-T4: infrared thermometer with penetration probe, 1 point laser sighting, alarm function, incl. TopSafe, wall/belt holder, probe protection cap and frozen food drill



Technical data:

Spectral range:8 to 14 μm
Measurement rate:0.5 sec
Distance to measurement spot:6:1
Emissivity:0.1 to 1
Meas. spot marking:1-point laser
Operating temperature:-20 to +50°C
Storage temperature:-40 to +70°C
Battery type:2 AAA micro batteries
Battery life:Approx. 20 h
Dimensions:148 × 34.4 × 19 mm
Display:LCD, 1 line
Weight:80 g
Warranty:2 years
Standard:EN 13485
Sensor types:InfraredNTC (testo 826-T4)
Measuring range:-50 to +300°C-50 to +230°C
Accuracy ±1 digit:±1.5 °C (-20 to +100°C)
±2°C or 2% of mv (remaining range)
±0.5°C (-20 to +99.9°C)
±1°C or 1% of mv (remaining range)
Resolution:0.1°C0.1°C
Spectral range:8 to 14 μm
Measurement rate:0.5 sec1.25 sec


ArticleOrder No.
(1)testo 826-T210 09 48282
(2)testo 826-T410 09 48284



Accessories: ISO calibration certificates/temperature
forOrder No.
Air/immersion probes, calibration point -18°C10 09 45261
Air/immersion probes, calibration point 0°C10 09 45262
Air/immersion probes, calibration points -18°C; +60°C10 09 45243
Air/immersion probes, calibration points -18°C; 0°C; +60°C68 09 00001
Infrared thermometers, calibration points -18°C, 0°C, +60°C10 09 45241
Infrared thermometers, calibration points 0°C, +60°C10 09 45252
