Contact Thermometer, IKA®

Electronic contact thermometer ETS-D5

Electronic contact thermometer with 3 patented operating modes by IKA®

  • with optimized PID control
  • RESET function
  • incl. sensor H 62
  • for all magnetic stirrers with contact thermometer connection acc. to DIN 12878 cl. 2
  • (e. g. IKA®, Heidolph, and Corning with adapter AD-C1)
  • with 3 patented operating modes
  • ensures perfect temperature control without overshooting of media temperature

3 patented operating modes for optimum adjustment to your working processes:
Operating mode A: Suitable for working with changing parameters (from -50°C to 450°C). Safety temperature can be set
Operating mode B: Suitable for serial processes with constantly identical conditions
Operating mode C: Suitable for non-supervised operation
All values are taken over from the memory, ensuring perfect protection from accidental or improper change of values.



Technical data:
Control deviation:±0.5 K
Measuring range:-50 to 450°C
Max. depth of immersion:200 mm
Dimensions (W × H × D):82 × 83 × 22 mm
Weight:0.2 kg


Article

Order No.

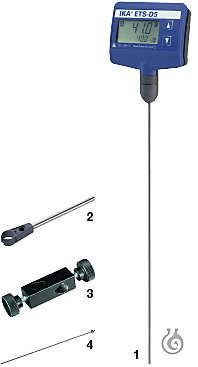

(1)Electr. contact thermometer ETS-D 510 36 03378



Accessories
ArticleOrder No.
(2)Holding rod H 3810 36 05447
For fastening ETS-D5 to the support rod H 16 V.
(3)Boss head clamp H 4410 36 04377
For fastening the holding rod H 38 to the support rod H 16 V.
Clamping range - stand: 10 – 11 mm
Clamping range - extension arm: 11 mm
Material: cast aluminum
(4)Support rod H 16 V10 36 05451
Stainless steel support rod for all magnetic stirrers with M 10 threaded bushing.
