S 18 D - 10 G - KS Plastic dispersing element | ACEFESA Productos Laboratorio España

High-performance Dispersing Instrument, IKA^®

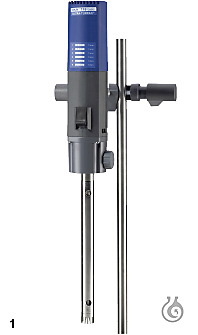

T 18 basic ULTRA-TURRAX®

Dispersing instrument for volumes of 1 ml to 1.500 ml (H2O).
A wide speed range allows you to work at high circumferential speeds.

Technical data:
Motor rating input/output:	500/300 W
Volume range (H2O):	1 – 1.500 ml
Speed adjustment:	stepless
Speed range:	3.500 – 24.000 rpm
Speed display:	scale
Dimensions (W × H × D):	65 × 240 × 80 mm
Weight:	1.6 kg
Permissible ambient temperature:	5 – 40°C
Permissible relative humidity:	80%
Protection class acc. to DIN EN 60529:	IP 20

	Article	Order No.
(1)	T 18 basic ULTRA-TURRAX®	10 36 04641

Dispersing elements for T 18 basic

Technical data:
Materials in contact with medium:	PTFE, AISI 316L
pH range:	2 – 13
Suitable for solvents:	yes
Suitable for abrasive substances:	yes
Max. temperature:	180°C
Sterilization methods:	all methods
Ultimate fineness, suspensions:	10 – 50 μm
Ultimate fineness, emulsions:	1 – 10 μm


Article	S 18 N - 10 G	S 18 N - 19 G
Working range ml	1 – 100	10 – 1500
Ø stator mm	10	19
Ø rotor mm	7.5	12.7
Gap between stator and rotor mm	0.35	0.40
Min./max. immersion depth mm	25/70	35/170
Installed length mm	108	204
Order No.	10 36 04639	10 36 04640
€/pc

Plastic dispersing elements for T 18 basic

Incl. 1 Disposable tube. Plastic materials used approved by FDA.

Technical data:
Materials in contact with medium:	Polycarbonat (PC), Polysulfon (PSU)
Max. temperature:	100°C
Sterilization methods:	autoclavable
