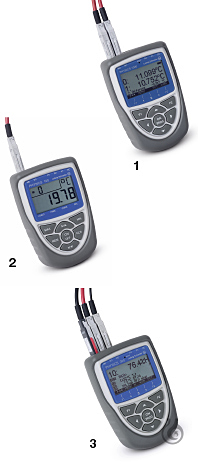

High precision digital measuring instruments PHYSICS 1000, PHYSICS 100-1, PHYSICS 300-3 and PHYSICS 51
Measuring systems "Made in Germany" with resolution up to 0.001 K. Optionally also available with factory test certificate or DAkkS certificate. | Article | Order No. | | (1) | Measuring device PHYSICS 1000 | 10 16 57089 | | High-precise measuring device for PT100 sensor, 2 measuring input channels, max. resolution up to 0.001°C, measuring range -200° to 400°C, 2 output sockets (1 interface), 99 values memory, multi-point calibration possible, 3 batteries AA, input for power adapter, menu multilingual, dimensions 127 × 83 × 42 mm, weight approx. 290 g | | | | Article | Order No. | | (2) | Measuring device PHYSICS 100-1 | 10 16 53731 | | For various measuring systems, 1 measuring input channel, max. resolution up to 0.01°C, 2 output sockets (1 interface), 99 values memory, multi-point calibration possible, 3 batteries AA, input for power adapter, menu multilingual, dimensions 127 × 83 × 42 mm, weight approx. 290 g. The 2-channel version is available on request. | | | | Article | Order No. | | (3) | Measuring device PHYSICS 300-3 | 10 16 59234 | | Digital measuring device with data logger function, 3 measuring input channels, max. resolution up to 0.01°C, 2 output sockets (1 interface), graphic display, internal memory approx. 12000 values, multi-point calibration possible, 3 batteries AA, input for power adapter, menu multilingual, dimensions 127 × 83 × 42 mm, weight approx. 290 g. The 2-channel version is available on request. | | | | Article | Order No. | | (4) | Measuring device PHYSICS 51 | 10 16 59235 | | Digital measuring device for thermocouples, NTC and humidity sensors, 1 measuring input channel, max. resolution up to 0.1°C, 2 output sockets (1 interface), max/min and hold function, multi-point calibration possible, 3 batteries AA, input for power adapter, menu multilingual, dimensions 127 × 83 × 42 mm, weight approx. 260 g |
PHYSICS probes
| Article | Order No. | | Immersion resistance thermometer Pt1002) | 10 16 59954 | | Insertion resistance thermometer Pt1002) | 10 16 59966 | | 4 × 150 mm, cable 2 m, class A, range: -50 to +200°C/0.01°C | | | Immersion thermocouple type K1), 2) | 10 16 59961 | | 1,5 × 250 mm, cable 2 m, class 2, range: -90 to +350°C/0.1°C | | | Immersion thermocouple type K1), 2) | 10 16 59962 | | 3 × 150 mm, cable 2 m, class 2, range: -50 to +200°C/0.1°C | | | Insertion thermocouple type K1), 2) | 10 16 59963 | | 3 × 150 mm, cable 2 m, class 2, range: -50 to +200°C/0.1°C | | | Immersion resistance thermometer Pt1003) | 10 16 57527 | | 3 × 250 mm, cable 2 m, class 1/10B, range: -90 to +350°C/0.001°C | | | Immersion resistance thermometer Pt1003) | 10 16 59265 | | 3 × 400 mm, cable 2 m, class A, range: -90 to +350°C/0.001°C | | | Immersion resistance thermometer Pt100 in glass3) | 10 16 59270 | | 3 × 400 mm, cable 2 m, class A, range: -90 to +350°C/0.001°C | | | Surface sensor type K1), 2) | 10 16 54106 | | 15 × 170 mm with thin-line thermocouple, cable 1.5 m, range: -50 to +400°C/0.1°C | | | Humidity/atmospheric pressure sensor, digital1), 2) | 10 16 53953 | | 9 × 65 mm, cable 2 m, range: 5 – 98% r.H. /-20 – +60°C / 700 – 1100 mbar | | | Sensor for barometric pressure1), 2) | 10 16 59645 | | Hose connector: 5 mm, L 90 × W 20 × H 7.6 mm, range: 700 – 1050 mbar | | | CO2 sensor, digital1), 2) | 10 16 54143 | | 18 × 250 mm, cable 1.5 m, range: 0 – 10,000 ppm, -40 – +60°C, 700 – 1100 mbar | |
Other sensors and parameters are available on request.
1) suitable for PHYSICS 51
2) suitable for PHYSICS 100/300
3) suitable for PHYSICS 1000
Accessories
| Article | Order No. | | Mains adapter 230 V, 200 mA | 10 16 55790 | | USB cable (galvanically isolated, max. 115.2 kB) | 10 16 55791 | | Software PHYSICS VIEW | 10 16 58306 | | Rubber sleeve for digital mesuring device | 10 16 55884 | | Case for measuring device, sensor and accessories | 10 16 57844 |
|
|
