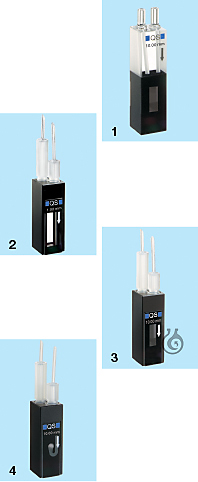

(1) Flow-through cells, with inlet and outlet tubes, Type 176.000
| Outer dimensions H × W × D: | 38.5 or 45 × 12.5 × 12.5 mm | | Aperture: | 11 × 4 mm | | Material: | quartz glass SUPRASIL® (200 – 2500 nm) |
| Layer thickness
mm | Volume
µl | Center | Order No. | | 10 | 450 | 15 | 19 55 30102 | | 10 | 450 | 8.5 | 19 55 30832 |
(2) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 170.000
| Outer dimensions H × W × D: | 35 × 12.5 × 12.5 mm | | Aperture: | 17.5 × 3.5 mm | | Material: | quartz glass SUPRASIL® (200 – 2500 nm) |
(3) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 176.700
| Outer dimensions H × W × D: | 35 × 12.5 × 12.5 mm | | Aperture: | 11 × 3.5 mm | | Material: | quartz glass SUPRASIL® (200 – 2500 nm) |
(4) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 178.710
| Outer dimensions H × W × D: | 35 × 12.5 × 12.5 mm | | Aperture: | 3 mm Ø (specify center dimension) |
| Layer thickness
mm | Vol.
µl | Center | Material | Order No. | | 10 | 80 | 15 | Optical special glass (320 – 2500 nm) | 10 55 11163 | | 10 | 80 | 8,5 | Optical special glass (320 – 2500 nm) | 19 55 21161 | | 10 | 80 | 15 | Quartz glass SUPRASIL® (200 – 2500 nm) | 10 55 11164 | | 10 | 80 | 8,5 | Quartz glass SUPRASIL® (200 – 2500 nm) | 19 55 21162 |
|
|
