Flow-Through Cells, Hellma®

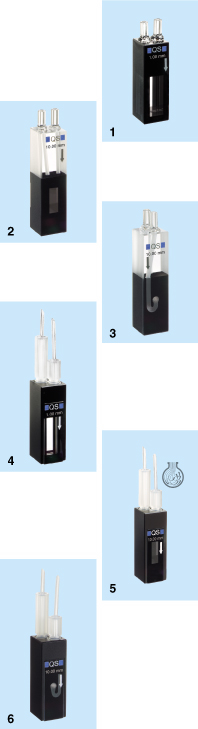

(1) Flow-through cells, with inlet and outlet tubes, Type 170

Outer dimensions H × W × D: 35 × 12.5 × 12.5 mm

Aperture: 17.5 × 3.5 mm (17.5 × 6.5 mm = 1.2 mm light path)



 Layer thickness
mm		Volume
µl		MaterialOrder No.
 0.1  6.2Quartz glass SUPRASIL® (200 – 2500 nm)19 55 17022
 1120Optical special glass (320 – 2500 nm)19 55 19011
 1120Quartz glass SUPRASIL® (200 – 2500 nm)19 55 19012
 2240Quartz glass SUPRASIL® (200 – 2500 nm)19 55 19022



(2) Flow-through cells, with inlet and outlet tubes, Type 176.000

Outer dimensions H × W × D: 38.5 or 45 × 12.5 × 12.5 mm

Aperture: 11 × 4 mm

Material: quartz glass SUPRASIL® (200 – 2500 nm)



 Layer thickness
mm		Volume
µl		CenterOrder No.
 10 4501519 55 30102
 10 450 8.519 55 30832
 5022501519 55 30502
 502250 8.519 55 30501



(3) Flow-through cells, with inlet and outlet tubes, Type 178.010

Outer dimensions H × W × D: 38.5 or 45 × 12.5 × 12.5 mm

Aperture: 3 mm dia.



 Layer thickness
mm		Vol.
µl		CenterMaterialOrder No.
 10 80 8.5Quartz glass SUPRASIL® (200–2500 nm)19 55 40310
 10 8015Quartz glass SUPRASIL® (200–2500 nm)19 55 40102
 50370 8.5Quartz glass SUPRASIL® (200–2500 nm)19 55 40842
 5037015Quartz glass SUPRASIL® (200–2500 nm)19 55 40202
 10 80 8.5Optical special glass (320–2500 nm)19 55 40311
 10 8015Optical special glass (320–2500 nm)19 55 40101



(4) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 170.000

Outer dimensions H × W × D: 35 × 12.5 × 12.5 mm

Aperture: 17.5 × 3.5 mm

Material: quartz glass SUPRASIL® (200 – 2500 nm)



 Layer thickness
mm		Volume
µl		Order No.
 0.1  6.219 55 22202
 0.2 12.419 55 22212
 0.5 3119 55 22222
 1 6219 55 22252
 212419 55 22322



(5) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 176.700

Outer dimensions H × W × D: 35 × 12.5 × 12.5 mm

Aperture: 11 × 3.5 mm

Material: quartz glass SUPRASIL® (200 – 2500 nm)



 Layer thickness
mm		Volume
µl		CenterOrder No.
  5 1951510 55 15051
  5 195 8.510 55 15052
 10 3901519 55 15102
 10 390 8.519 55 15832
 5019501510 55 15501
 501950 8.510 55 15502



(6) Flow-through cells, compact with 2 screw connectors and FEP tubes, Type 178.710

Outer dimensions H × W × D: 35 × 12.5 × 12.5 mm

Aperture: 3 mm Ø (specify center dimension)



 Layer thickness
mm		Vol.
µl		CenterMaterialOrder No.
 10 8015Optical special glass (320 – 2500 nm)10 55 11163
 10 80 8.5Optical special glass (320 – 2500 nm)19 55 21161
 10 8015Quartz glass SUPRASIL® (200 – 2500 nm)10 55 11164
 10 80 8.5Quartz glass SUPRASIL® (200 – 2500 nm)19 55 21162
 5037015Quartz glass SUPRASIL® (200 – 2500 nm)10 55 11165
 50370 8.5Quartz glass SUPRASIL® (200 – 2500 nm)10 55 11166
